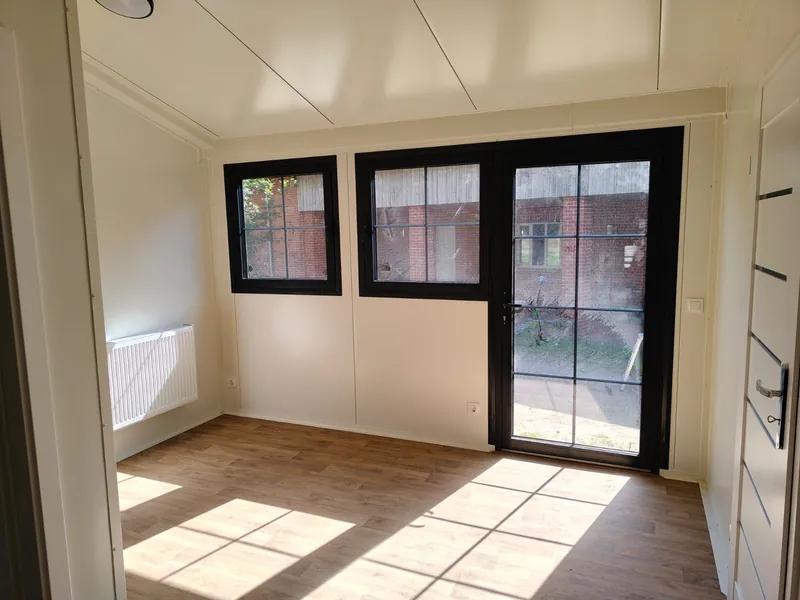

Site office

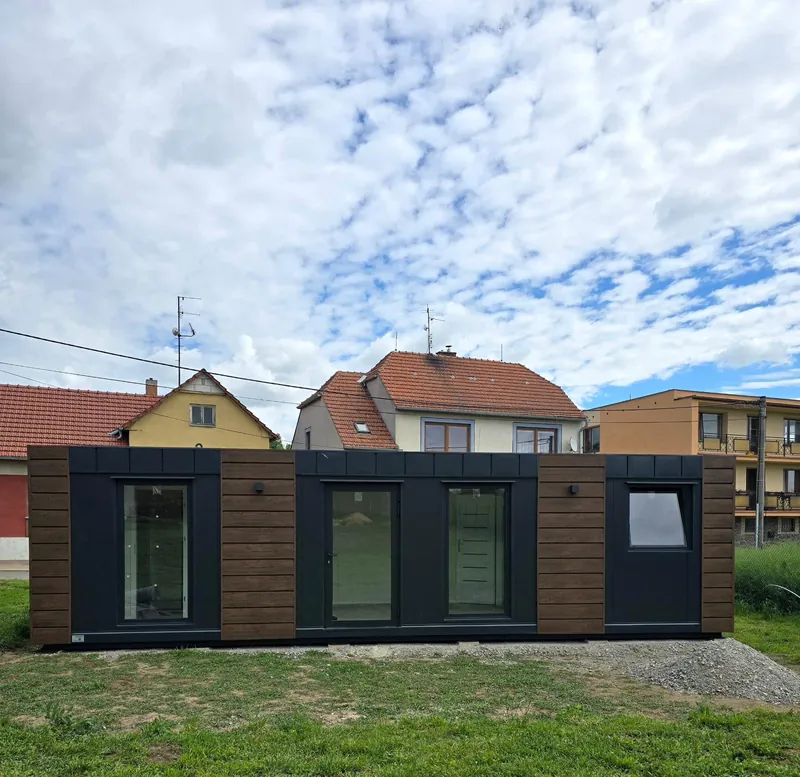

Workstations for site management and foremen, with a window band, electrical installation and heating.
← Back to home
Site modules

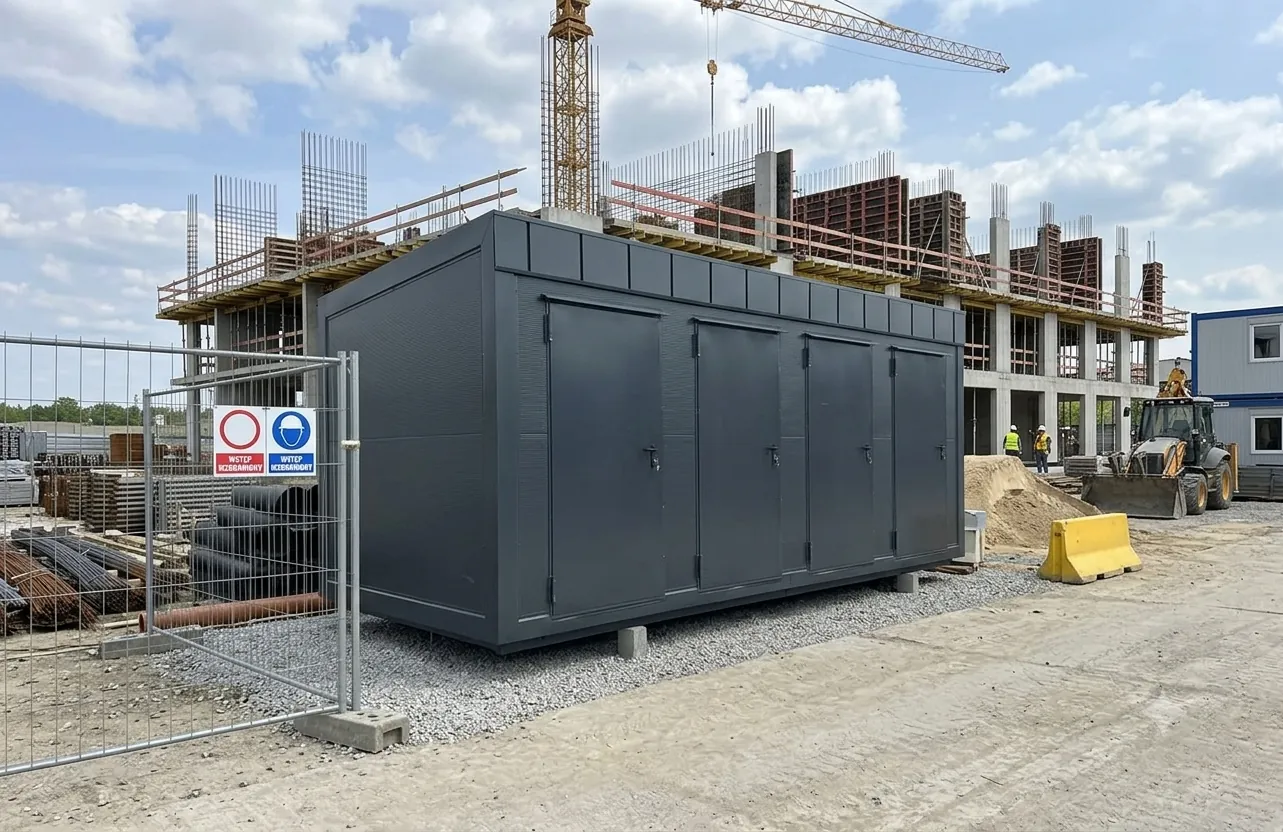

Built for the building site.
Site offices, break rooms and storage modules that survive daily site life, and simply move on to the next project.
Site-proof
Relocatable, stackable, reusable
Site modules are capital assets, not consumables. The galvanised frame with integrated crane eyes allows them to be moved across many projects, even after years in service.
- Integrated crane eyes for quick relocation

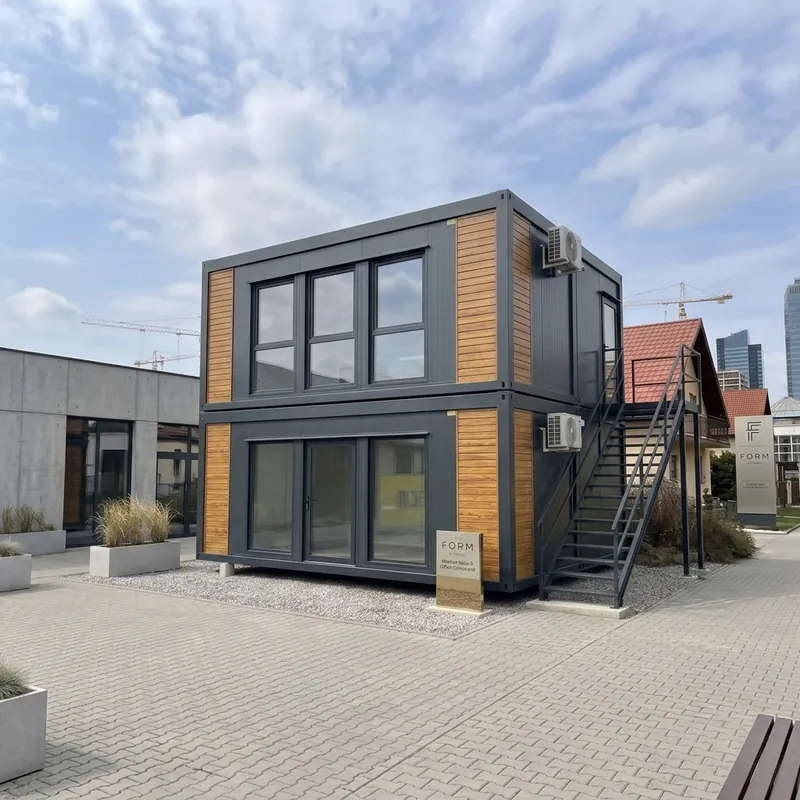

- Stackable into two-storey arrangements with an external staircase and access balcony
- Couplable into open-plan offices and meeting rooms
- Fully insulated: heatable for winter operation
Variants
Four module types for the build programme
Combinable into a complete site set-up, from site management to the material store.
Break room

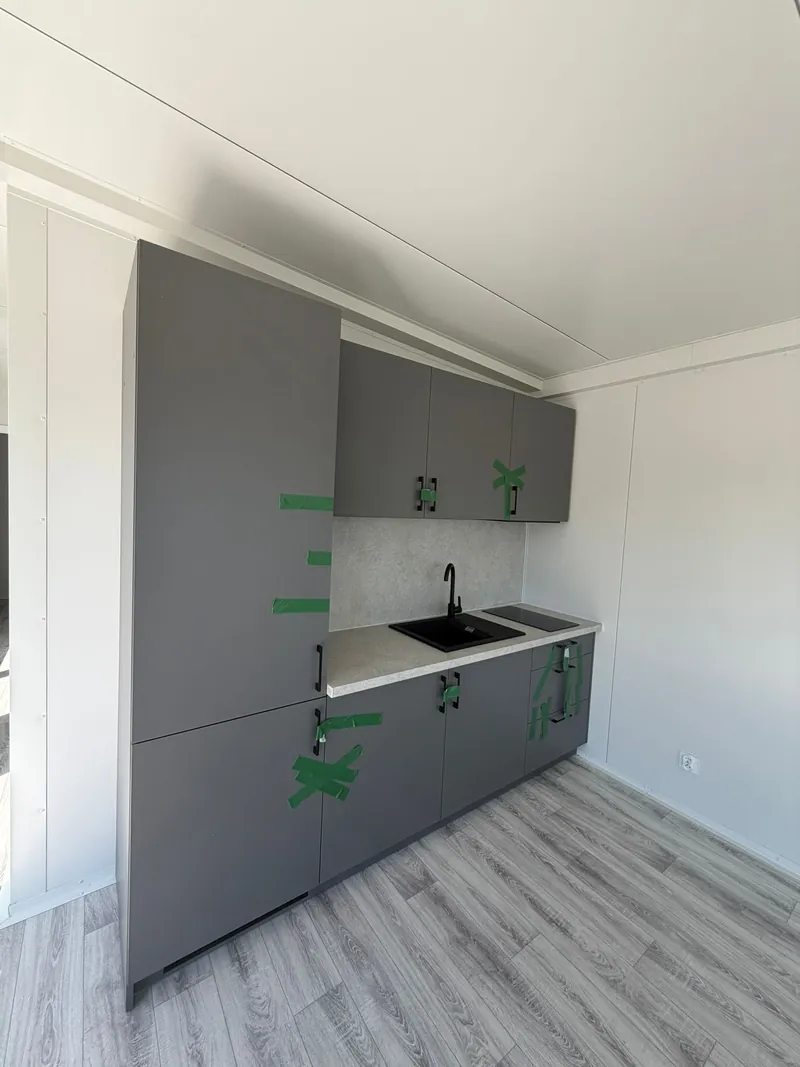

Rest area with a kitchenette and seating in line with German workplace regulations.
Changing & washing
Locker areas, washing places, showers and WC cubicles, see also sanitary containers.
Store & tools
Lockable material store with a reinforced door and, optionally, no windows.
Available sizes
Dimensions that suit your plot
Every length is available in 3.00 m and 4.00 m width. Several modules can be coupled lengthways or sideways into larger units.
- 6 × 3 m
- 6 × 4 m
- 7 × 3 m
- 7 × 4 m
- 8 × 3 m
- 8 × 4 m
- 9 × 3 m
- 9 × 4 m
- 10 × 3 m
- 10 × 4 m
- 11 × 3 m
- 11 × 4 m
- 12 × 3 m
- 12 × 4 m
- 13 × 3 m
- 13 × 3.5 m
Technical data
The construction in numbers
Reference values for a 10.00 × 4.00 m module. Other sizes scale accordingly.
- External dimensions
- 10.00 × 4.00 m
- Internal dimensions
- 9.80 × 3.80 m
- External frame height
- 2.80 m
- Frame
- galvanised L and U profiles with crane eyes
- Wall build-up
- 100 mm PIR, U-value 0.21 W/m²K
- Roof build-up
- 100 mm PIR, flat roof, U-value 0.21 W/m²K
- Floor build-up
- 100 mm PIR on OSB, U-value 0.21 W/m²K
- Stackability
- two storeys, with external staircase
- Facade
- trapezoidal sheet in a RAL colour
- Heating
- electric heating or air conditioning with heating function
Delivery is not included in the module price.
Heavy haulage with pilot escort including crane unloading costs between
€3,800 and €7,800 plus VAT depending on the German federal state. We
calculate the exact figure per project.
Gallery
Impressions from our production
Next step
Let's put your site set-up together.
Tell us the headcount, the project duration and the location, we will cost the right combination of modules.
